Welcome! This page will show you how to assemble your 1:200 Delta IV Medium. Follow these instructions carefully, and you will have an accurate 1:200 scale model of the Delta IV
Medium. While this is the smallest and least-powerful Delta IV, it is still extremely capable. It can heave 9,285 lbs (4,210 kg) into geostationary transfer orbit.
Some good music
A lot of free time.
Step 1: You must have built one CBC before you can build your Delta IV Medium. If you haven't, please go here.

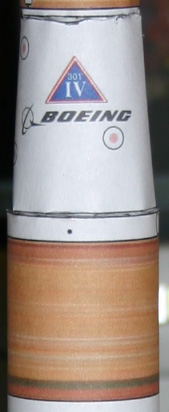

If you have, then cut out part 2, and form into a cone and glue using the accompanying glue tab, as shown below. Fold the triangular
glue tabs on the edges of the cone inward 90 degrees. Glue the part 2, large side down, onto the
top of the CBC (the end without the nozzle), aligning the seams on the back of the CBC and part 2. Cut out part 3 and glue to the open end of part 2. Trim away any excess on
Step 2: Cut out part 4, form into a cylinder, and glue with the accompanying glue tab. Fold the triangular tabs on the ends of the part 90 degrees inward, and glue to the top of
part 2, aligning the seams on the back of part 4 with that of part 2. Cut out and glue part 3 onto the top of part 4. Then, cut out part 1, then start at the right side of the
seam of part 4, gluing the part around part 4. Make sure that the black line on part 1 farthest from the end is closer to the right of the seam. Then, cut out parts 8, and
glue to the black lines on part 4.

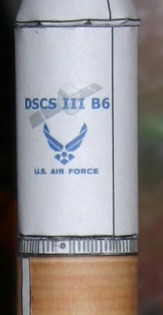

Step 3: Cut out part 5, form into a cylinder, and glue with the accompanying glue tab. Fold the triangular tabs on the ends of the parts 90 degrees inward, and glue to the
top of part 4, as shown below, again aligning the seams on the parts. Cut out the last part 3 and glue to the open end of the part 5.
Step 4. Cut out part 6, form into a cone, and glue with the glue tab. Fold the triangular tabs around the large end of the part inward, and glue to the top of part 5. DO
NOT ALIGN THE SEAMS! RATHER, ALIGN THE PRINTED LINES ON PARTS 5 AND 6, AS SHOWN BELOW!
Step 5: Cut out part 7, cut along one side of the white section, and form into a black cone. Glue to the top of part 6, as shown above.
Congratulations! You have completed your model of the Delta IV Medium!
